Complete Slitting Systems

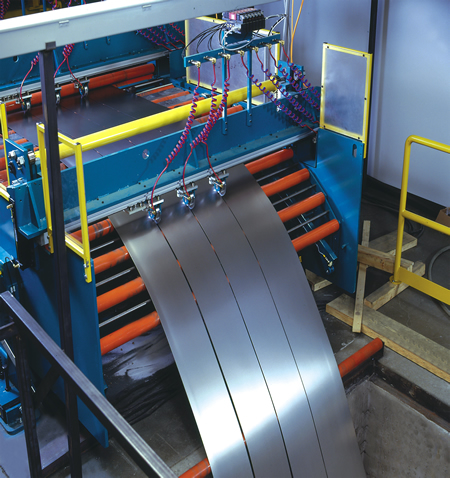

Our slitting systems produce tight, evenly wound coils from master coils. The slitting system starts with a heavy duty uncoiler which decoils the material into a straightener and slitter before moving onto a tension recoiler.
The slitting system is designed for use as a spin-down line to convert master coils into smaller coils. Our slitting system can be modified at a later date to be a Combination Multi-Blanking and Recoiling Line with the addition of a shear, stacker and bridge table.
Specifications
| Uncoiling Capacity |
Up to 60,000 lbs. (27200 kg) |
| Max. Coil Width |
Up to 72" (1829 mm) |
| Min. Coil Width |
6" (152 mm) |
| Slitting Capacity |
Material
14 ga. (1.8 mm)
16 ga. (1.5 mm) |
Max. no. of slits
8
11 |
| Slit Width |
Slitter width accuracy is operator dependent and machine repeatability will be ± .007"
(.18 mm) on each setup measured on center strip |
| Coil Winding Capacity |
up to 20,000 lbs. (9080 kg) |
| O. D. Capacity |
24" to 64" (610 to 1625 mm) |
| Producible Coil I. D.'s |
20" (508 mm) (Other dia. avail. upon request) |
| Rewind Tension |
Variable, 0-3,500 lbs. (0 - 1590 kg) |
| Line Speed |
Variable, 0 - 150 fpm (0 - 45 mpm) |
| Material Thickness Range |
.015" to .075" (0.38 to 1.90 mm) |
| Min. Slit Strip Width |
3" (51 mm) including outside edges |
| Drive |
Variable speed based on application |
| Expansion |
Pneumatic expansion with gripper assy. |
When doing multiple slits it is recommended to use a looping pit with Ultrasonic Loop Control. IPI can assist you in determining what depth pit is required for variance in material thickness across the width of a coil.
Available Options
- Coilcar unload
- Hydraulic push off
- Turnstyle
- Downlayer
- Quick change separator shafts
