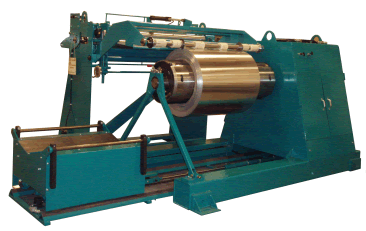

Economy Recoiling
This recoiling system produces tight, evenly wound coils following a slitting or other coil processing operation. It is designed for use as a spin-down tension recoiler to convert master coils into smaller coils. This system can also be used to salvage an unused section of a coil in a processing line.
The system is designed to recoil multiple coils. It can follow a slitting line, multi-blanking line, or other piece of coil processing equipment.
Specifications
| Coil Winding Capacity: |
10,000 lbs (4540 kg) |
| O.D. Capacity: |
24” to 48” (610 to 1219 mm) |
| Producible Coil I.D.’s: |
20” (508 mm) |
| Rewind Tension: |
Variable, 0-3,500 lbs. (0-1590 kg) |
| Line Speed: |
Variable, 0 - 150 FPM (0-45 MPM) |
| Material Thickness Range: |
.015” to .075” (.38 to 1.90 mm) |
| Minimum Slit Strip Width: |
3” (51 mm) (including outside edges) |
| Drive: |
Variable speed based on application |
| Expansion: |
Pneumatic expansion with gripper assembly |
When doing multiple coils it is recommended to use a looping pit with Ultrasonic Loop Control. IPI can assist you in determining what depth pit is required for variance in material thickness across the width of a coil.
Available Options
- Ultra-sonic loop control
- Bridge table
- Coilcar unload
- Hydraulic push off
- Turnstile
- Downlayer
