DieMation

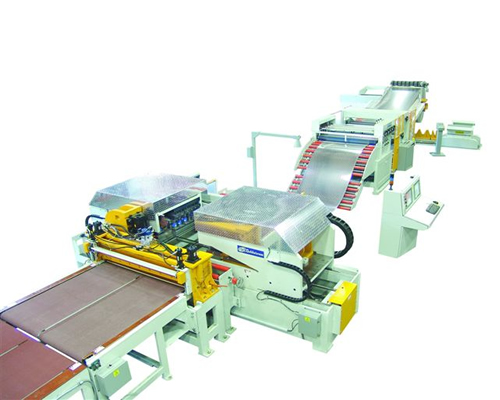

DieMation cuts and punches along the length of a coil. The “X” axis is produced by the coil movement though the Servo roll feed. The “Y” axis produced when the two opposing servo driven presses and tooling move across the coil width. With both axes’ working in conjunction with one and another virtually any shape can be produced with the correct tooling in the tool holders.



DieMation has the flexibility to produce multiple parts across the width of a coil and nest smaller product in areas that would have normally been scrap in the past.



DieMation is ideal for prototype work as well as small to high production manufacturing. Multiple part families can be produced utilizing quick change tool holders. Both tool holders can be removed and replaced within 5 minutes with one operator. Special presses and die can be added to the system. This will allow special punches and formed shapes to be added to the line.



DieMation has the flexibility to produce multiple parts across the width of a coil and nest smaller product in areas that would have normally been scrap in the past.

Specifications

Widths 48", 60", 72" (1219 mm, 1524 mm, 1828 mm)
Gauges .030" - .080" (.76 mm - 2.0 mm) Standard
Coil Weight 10 - 50,000 lbs. (4,540 - 22,700 kg.)
Coil I. D. 19½" - 24½" (495 mm - 620 mm)
Coil O. D. Max. 64" - 72" (1625 mm - 1829 mm)
Material Feed 200 fpm (90 mpm)
Tooling Type Thick Style Turret
Tool Quantity (18) Fixed, (1) Rotating per side, Min.
Punch Speed (300) spm Each Press, (600) spm Total
Feed Rolls

Hardened & Chromed
Straightener (6) Roll (Straightener only)
Available Options
Up-ender Coil Car
Traversing Uncoiler Dual Head Uncoiler
Peeler Table B&K Leveler
Special Materials (SS, Alum, Pre-Paint) Additional Tool Holders
Special Presses & Dies Exit Conveyors
Automated Stackers Rollformers
Automated Benders
