Flex Fab - Door Frame Fabrication Line

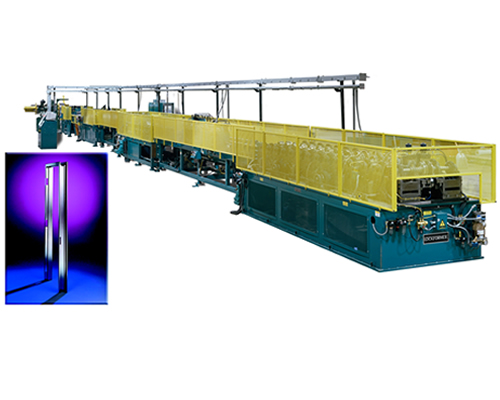

A complete fabrication line that manufactures steel door frames from coils. The operator enters the part numbers and quantities to create the manufacturing recipe and starts the line. The equipment will then automatically blank and form the door frames per the recipe.



The line includes:

    • Coil Car
    • Uncoiler
    • Coil Processor #1 (Straightener, Roll Feed, Edge Trim Slitter, Scrap Chopper and Per-Notch)
    • Bridge Table
    • Ultrasonic Loop Control
    • Coil Processor #2 (Roll feed, 6 Lead/Trail Notchers, Slug Die and Shear)
    • Skew Conveyor
    • Rollformer #1 (Forms the Hat Section and Edge Forming)
    • Notcher (Lock and Hinge Prep)
    • Rollformer #2 (Forms the Final “U” Bend)


A complete fabrication line that manufactures steel door frames from coils. The operator enters the part numbers and quantities to create the manufacturing recipe and starts the line.

Specifications

Widths 9" - 18" (228 mm - 457 mm)
Gauges 14 - 16 ga.
Coil Weight 10,000 lbs. (4,540 kg.)
Coil I. D. 19½" - 24½" (495 mm - 620 mm)
Coil O. D. Max. 64" (1625 mm)
Speed 2 ppm
Length 24" - 168" (609 mm - 4267 mm)
Feed Rolls

Hardened & Chromed
Straightener (6) Roll (Straightener only)
Available Options
Up-ender Exit Conveyors
Traversing Uncoiler Dual Head Uncoiler
Peeler Table B&K Leveler
Automated Stackers
