Cut to Length - 1 (CTL - 1)

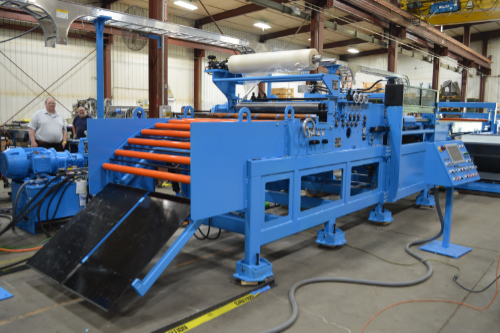

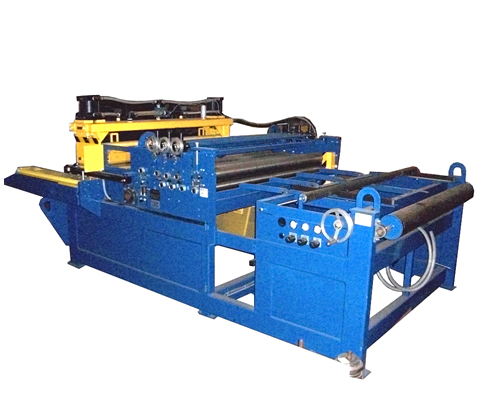

The CUT-TO-LENGTH-1 is an automatic blanking machine designed to produce finished blanks or sheets from coil stock. The 6 roll powered straightener section removes coil set and the flying shear assembly cuts the material to length.



The CUT-TO-LENGTH-I is an automatic blanking machine designed to produce finished blanks or sheets from coil stock.

Specifications

Available widths 48", 60", 72" (1219 mm, 1524 mm, 1828 mm)
Minimum material thickness .015" (.38mm)
Maximum material thickness .063" (1.6mm)
Shear Strength 50,000 psi (35 kg/mm2)
Tensile Strength 67,000 psi (47 kg/mm2)
Yield Strength 55,000 psi (38,5 kg/mm2)
Roll Size 3.375" (65.7 mm) dia. & 4.167" (107 mm) dia.
Line Speed 10 fpm to 100 fpm (3 - 30 mpm)
Part Tolerance:
Length

± 1/32" (± 3/4 mm) to 50 fpm (15 mpm)

± 1/16" (± 1-1/2 mm) to 100 fpm (31 mpm)

± 3/32" (± 2-1/4 mm) to 150 fpm (45 mpm)



Available Options

  • Chrome Rolls
  • Variable Speed Control 15 to 150 fpm (4.5 to 45 mpm)
  • Vinyl Applicator
  • HVAC Beading
  • Recoiling
