Cut to Length 3 (CTL-3)

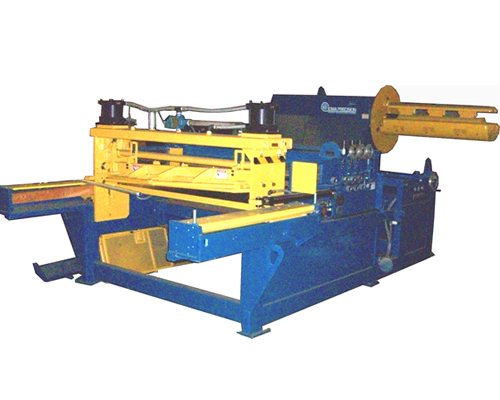

The CTL-3 is an automatic blanking machine designed to produce finished blanks or sheets from coil stock. The powered 6 roll straightener section removes coil set and the flying shear assembly cuts the material to length.



The CTL-3 incorporates a Programmable Logic Control (PLC) to insure much higher quality of blank tolerance and higher production rates.



The CTL-III incorporates a Programmable Logic Control (PLC) to insure much higher quality of blank tolerance and higher production rates.

Specifications

Available widths 48", 60", 72" (1219mm, 1524mm, 1828mm)
Min. Coil Width 12" (305 mm)
Minimum material thickness .024" (.6 mm) mild steel
Maximum material thickness .135" (3.4 mm) mild steel
Shear Strength 50,000 psi (35 kg/mm2)
Tensile Strength 67,000 psi (47 kg/mm2)
Yield Strength 55,000 psi (38.5 kg/mm2)
Roll Size 5.200" (132 mm)
Line Speed 15 fpm to 150 fpm (4.5 to 45 mpm)
Part Tolerance:
Length ± .015" (± .4 mm)



Available Options

  • Chrome Rolls
  • Vinyl Applicator
  • HVAC Beading
  • Recoiling
