Multi-Pro 4

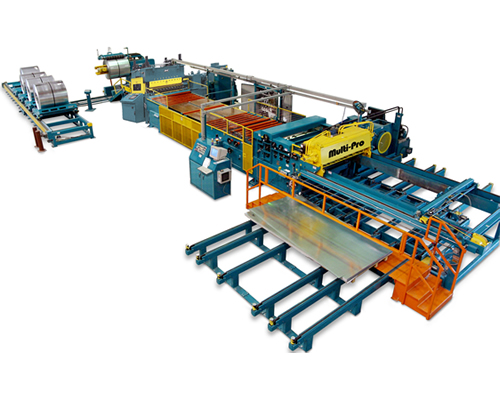

The MULTI-PRO 4 is an automatic blanking machine designed to produce finished blanks or sheets from coil stock. The coil stock can be slit to obtain the correct width (edge trim) or to provide multiple blanks.



The MULTI-PRO-4 system incorporates a Programmable Logic Control (PLC) to insure much higher quality of blank tolerance and higher production rates. Optical encoders constantly monitor the material to provide very close tolerances on finished parts.



The MULTI-PRO IV is an automatic blanking machine designed to produce finished blanks or sheets from coil stock. The coil stock can be slit to obtain the correct width (edge trim) or to provide multiple blanks.

Specifications

Available widths 48", 60", 72" (1219mm, 1524mm, 1828mm)
Min. Coil Width 6" (305 mm)
Minimum material thickness .015" - .24" (.38 mm - .61 mm) mild steel
Maximum material thickness .064" - .135" (1.63 mm - 3.4 mm) mild steel
Min. slit width 4" (101.6 mm)
Min. edge trim .25" (6.35 mm)
Min. blank length @ 15 fpm (4.5 mpm) 6.5" (165 mm)
Shear Strength 50,000 psi (35 kg/mm2)
Tensile Strength 67,000 psi (47 kg/mm2)
Yield Strength 55,000 psi (38.5 kg/mm2)
Roll sizes 4.800" - 5.200" (122 mm - 132 mm)

Line Speeds

.015" - .062" (.38 mm - 1.58 mm)

.062" - .074" (1.58 mm - 1.88 mm)

.074" - .135" (1.88 mm - 3.4 mm)



15 fpm to 250 fpm (4.5 to 75 mpm)

15 fpm to 150 fpm (4.5 to 30 mpm)

15 fpm to 75 fpm (4.5 to 23 mpm)
Part Tolerance:
Length

± .015" (±.38 mm) @ 15-150 fpm (4.5 - 45 mpm)

± .030" (±.76 mm) @ 150-250 fpm (45 - 75 mpm)
Slitting Capacity

Material

10 ga. (3.4 mm)

12 ga. (2.7 mm)

14 ga. (1.9 mm)

16 ga. (1.5 mm)

Max. Slits

3

5

8

11
Slit Width Slitter width accuracy is operator dependant and machine repeatability will be ± .007" (.18 mm) on each setup



Available Options

  • Chrome Rolls
  • Vinyl Applicator
  • Recoiling
