Slear - 1

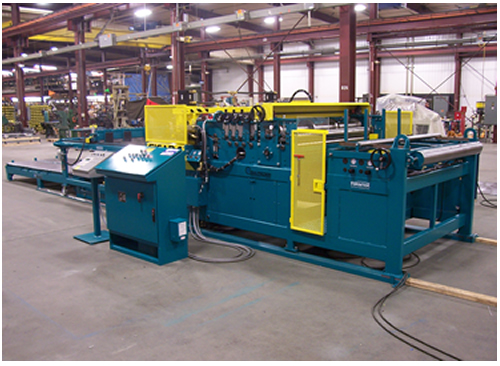

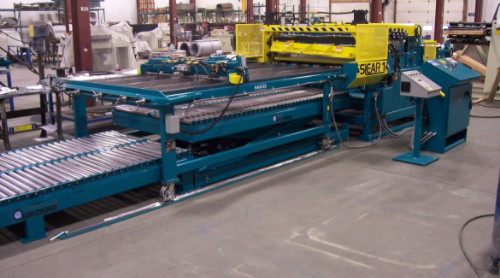

The SLEAR - 1 is an automatic blanking machine designed to produce finished blanks or sheets from coil stock. The coil stock can be slit by the slitting section to obtain the correct width or to provide multiple blanks. The powered straightener section removes coil set and the flying shear assembly cuts the material to length.



The powered straightener section removes coil set and the flying shear assembly cuts the material to length.

Specifications

Available widths 48", 60", 72" (1219mm, 1524mm, 1828mm)
Min. Coil Width 6" (305 mm)
Minimum material thickness .015" (.38 mm) mild steel
Maximum material thickness .063" (1.6 mm) mild steel
Shear Strength 50,000 psi (35 kg/mm2)
Tensile Strength 67,000 psi (47 kg/mm2)
Yield Strength 55,000 psi (38.5 kg/mm2)
Line Speed 10 fpm to 100 fpm (3 to 30 mpm)
Part Tolerance:
Length

± 1/32" (± 3/4 mm) to 50 fpm (15 mpm)

± 1/16" (± 1-1/2 mm) to 100 fpm (31 mpm)

± 3/32" (± 2-1/4 mm) to 150 fpm (45 mpm)
Slitting Capacity

Material

16 ga. (1.5 mm)

18 ga. (1.2 mm)

Max. Slits

5

6
Slit Width Slitter width accuracy is operator dependant and machine repeatability will be ± .007" (.18 mm) on each setup measured on center blank



Available Options

  • Chrome Rolls
  • Variable Speed Control 15 to 150 fpm (4.5 to 45 mpm)
  • Vinyl Applicator
  • HVAC Beading
  • Recoiling
  • Close Tolerance Package for improved accuracy:
      • ± .020" from 15 to 50 fpm(± 0,5 mm from 4.5 to 15 mpm)
      • ± .031" from 50 to 150 fpm (± 0,8 mm from 15 to 45 mpm)
